Without height adjustment Ø3 to Ø16mm (KS2000/ES)
product description

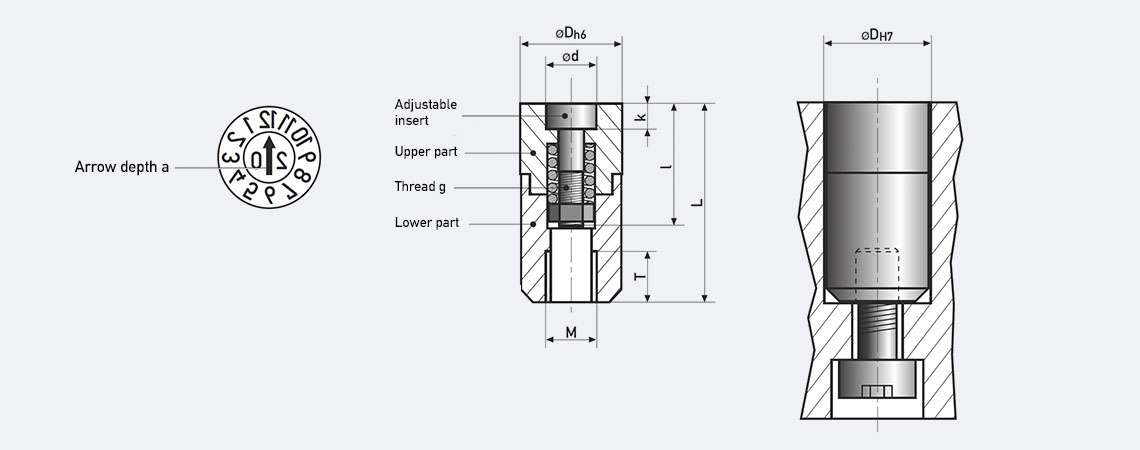

- Without height adjustment
- Adjustable insert changeable from mould side
- Threaded pin for fixing into the mould
- Engraving mirrored, recessed
Dimensions table (mm)
| Sleeve | D | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 16 |
| L | 14 | 14 | 17 | 17 | 20 | 20 | 25 | 33 | |
| M | 2 | 2 | 3 | 3 | 4 | 5 | 6 | 8 | |
| T | 3 | 2 | 3 | 3 | 4 | 4 | 6 | 8 | |
| Insert | d | 1,6 | 2,5 | 3,1 | 3,1 | 4,6 | 4,6 | 6,4 | 8,4 |
| k | 2 | 2,3 | 2,8 | 2,8 | 4 | 4 | 4 | 5 | |
| l | 9 | 10,5 | 13 | 13 | 14 | 14 | 17 | 23 | |
| g | M1x0,25 | M1,4×0,2 | M1,6×0,2 | M1,6×0,2 | M2,5×0,35 | M2,5×0,35 | M3x0,5 | M3,5×0,6 | |
| a | 0,3 | 0,3 | 0,4 | 0,4 | 0,4 | 0,4 | 0,6 | 0,6 |
Material: 1.4034 hardened
| type | display | order ID |
|---|---|---|
 | months + year
| KS2003 / 1-12 /..(year) KS2008 / 1-12 /..(year) KS2004 / 1-12 /..(year) KS2010 / 1-12 /..(year) KS2005 / 1-12 /..(year) KS2012 / 1-12 /..(year) KS2006 / 1-12 /..(year) KS2016 / 1-12 /..(year) |
 | months
| KS2003 / 1-12 KS2008 / 1-12 KS2004 / 1-12 KS2010 / 1-12 KS2005 / 1-12 KS2012 / 1-12 KS2006 / 1-12 KS2016 / 1-12 |
 | 6 years (year + 5)
| KS2003 /..(year)+5 KS2008 /..(year)+5 KS2004 /..(year)+5 KS2010 /..(year)+5 KS2005 /..(year)+5 KS2012 /..(year)+5 KS2006 /..(year)+5 KS2016 /..(year)+5 |
 | 12 years (year + 11)
| KS2003 /..(year)+11 KS2008 /..(year)+11 KS2004 /..(year)+11 KS2010 /..(year)+11 KS2005 /..(year)+11 KS2012 /..(year)+11 KS2006 /..(year)+11 KS2016 /..(year)+11 |
 | numbers 0-9
| KS2003 / 0-9 KS2008 / 0-9 KS2004 / 0-9 KS2010 / 0-9 KS2005 / 0-9 KS2012 / 0-9 KS2006 / 0-9 KS2016 / 0-9 |
 | shift numbers
| KS2003 / 1-3 KS2008 / 1-3 KS2004 / 1-3 KS2010 / 1-3 KS2005 / 1-3 KS2012 / 1-3 KS2006 / 1-3 KS2016 / 1-3 |
 | SET 1 weeks and years set | KS2003 / SET1 /..(year) KS2008 / SET1 /..(year) KS2004 / SET1 /..(year) KS2010 / SET1 /..(year) KS2005 / SET1 /..(year) KS2012 / SET1 /..(year) KS2006 / SET1 /..(year) KS2016 / SET1 /..(year) |
 | SET 2 date set The insert (month/year) need to changed monthly. (Inserts are included) | KS2003 / SET2 /..(year) KS2008 / SET2 /..(year) KS2004 / SET2 /..(year) KS2010 / SET2 /..(year) KS2005 / SET2 /..(year) KS2012 / SET2 /..(year) KS2006 / SET2 /..(year) KS2016 / SET2 /..(year) |
 | SET 3 date set | KS2003 / SET3 /..(year) KS2008 / SET3 /..(year) KS2004 / SET3 /..(year) KS2010 / SET3 /..(year) KS2005 / SET3 /..(year) KS2012 / SET3 /..(year) KS2006 / SET3 /..(year) KS2016 / SET3 /..(year) |
 | quarter + year
| KS2003 / 1-4 /..(year) KS2008 / 1-4 /..(year) KS2004 / 1-4 /..(year) KS2010 / 1-4 /..(year) KS2005 / 1-4 /..(year) KS2012 / 1-4 /..(year) KS2006 / 1-4 /..(year) KS2016 / 1-4 /..(year) |
 | letters A-M
| KS2003 / A-M KS2008 / A-M KS2004 / A-M KS2010 / A-M KS2005 / A-M KS2012 / A-M KS2006 / A-M KS2016 / A-M |
 | letters N-Z
| KS2003 / N-Z KS2008 / N-Z KS2004 / N-Z KS2010 / N-Z KS2005 / N-Z KS2012 / N-Z KS2006 / N-Z KS2016 / N-Z |
 | Engraving as desired (please add an sketch or drawing when ordering) | KS2003 /..(desired engraving) KS2008 /..(desired engraving) KS2004 /..(desired engraving) KS2010 /..(desired engraving) KS2005 /..(desired engraving) KS2012 /..(desired engraving) KS2006 /..(desired engraving) KS2016 /..(desired engraving) |
 | days
| KS2003 / 1-31 KS2008 / 1-31 KS2004 / 1-31 KS2010 / 1-31 KS2005 / 1-31 KS2012 / 1-31 KS2006 / 1-31 KS2016 / 1-31 |
 | sleeve without engraving
| KS2003 KS2008 KS2004 KS2010 KS2005 KS2012 KS2006 KS2016 |
 | year and arrow
| ES3 /..(year) ES8 /..(year) ES4 /..(year) ES10 /..(year) ES5 /..(year) ES12 /..(year) ES6 /..(year) ES16 /..(year) |
 | arrow
| ES3 ES8 ES4 ES10 ES5 ES12 ES6 ES16 |
 | Numbers/letters as desired (max. two-digit) | ES3 /..(desired engraving) ES8 /..(desired engraving) ES4 /..(desired engraving) ES10 /..(desired engraving) ES5 /..(desired engraving) ES12 /..(desired engraving) ES6 /..(desired engraving) ES16 /..(desired engraving) |
